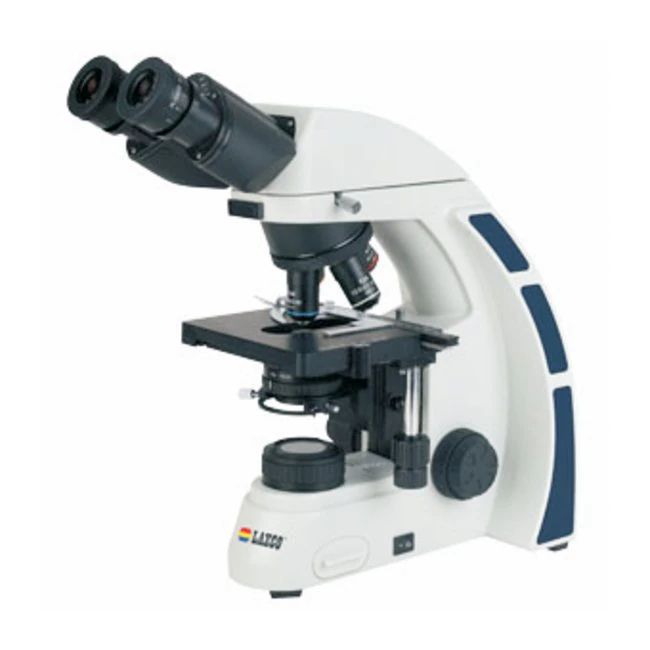

Laxco™ LMC-3000 Series Brightfield Compound Microscope System

Laxco™ LMC-3000 Series Brightfield Compound Microscope System

Rotating ergo binoculars allows for clear crisp imaging under bright field observation with flexibility of height between users. Laxco™ LMC-3000 Series Compound Microscope System is ideal for hematological applications.

Specifications

Diameter (Metric) 47.5cm
Width (Metric) 26.9cm
Height (Metric) 39.7cm
Optical Design Infinity, DIN, plan to 22mm FOV
Eyepiece 10X, 22mm FOV
Compare

Description

Description

Head

  • 360° swiveling binoculars tube for ergonomic viewing
  • Locked in Eyepiece
  • 30° observation angle
  • Adjustable diopter on left eyepieces
  • Adjustable interocular distance
  • Collapsible rubber eyecups

Objectives

  • Sealed 40X to prevent accidental damage from use of oil at 100X
  • Infinity corrected
  • Objective Turret: 5 position


Stand

  • Built-in carrying handle
  • Reverse objective turret allows for easy access to slides
  • Adjustable focusing stop protects slides from accidental damage
  • Removable LED cartridge

Illumination

  • Cool, stable, color temperature, brightness intensity
  • 50,000 bulb life
  • Koehler Illumination: Full with field diaphragm

Stage

  • Right-handed, X/Y mechanical stage

Certifications

Quality Proformance Certification
